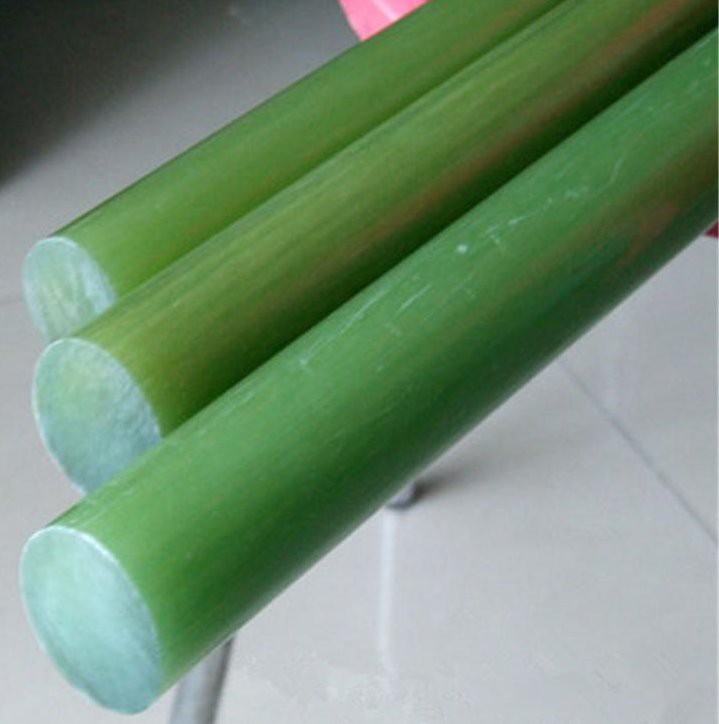

Product name: Epoxy Resin Fiberglass Rod
Material:Epoxy resin fiberglass
Insulation performance:high
Surface :Smooth
Size:As per customer customized
Technical process:Pultrision
G10 f4 fiberglass solid epoxy resin rod with best quality
Introduction.
Fiberglass Epoxy Pultruded Composite Insulator Core Rod suitable for application in Composite/Polymer Insulators and Lighting Arrestors.
Epoxy resins are impregnating compounds with the highest available quality of all comparable polymers for the pultrusions of FRP rod materials. Hot curing epoxy resin in combination with anhydride hardener gives an aging/hydrolysis resistant high strength matrix component. Polyester resins are not hydrolysis resistant and have lower mechanical and electrical properties.
Main Features
• High mechanical strength Specification of Epoxy Fiberglass Core |  |
Diameter | Kg/m | Diameter | Kg/m | Diameter | Kg/m | Diameter | Kg/m |
2 | 0.007 | 18 | 0.55 | 38 | 2.5 | 65 | 7.3 |
4 | 0.0276 | 19 | 0.63 | 40 | 2.8 | 70 | 8.5 |
5 | 0.043 | 20 | 0.69 | 42 | 3.05 | 75 | 9.8 |
6 | 0.062 | 22 | 0.84 | 44 | 3.35 | 78 | 10.51 |
8 | 0.11 | 24 | 0.98 | 45 | 3.5 | 80 | 11.1 |
9 | 0.14 | 25 | 1.08 | 46 | 3.6 | 90 | 14 |
10 | 0.17 | 26 | 1.17 | 48 | 3.98 | 100* | 17.3 |
12 | 0.25 | 28 | 1.36 | 50 | 4.32 | 110* | 21 |
14 | 0.34 | 30 | 1.6 | 52 | 4.7 | 120* | 24.9 |
15 | 0.39 | 31 | 1.66 | 53 | 4.9 | 130* | 29.2 |
16 | 0.45 | 32 | 1.8 | 55 | 5.3 | 140* | 33.9 |
17 | 0.5 | 34 | 2 | 60 | 6.2 | 150* | 38.9 |
17.48 | 0.53 | 35 | 2.04 | 63 | 6.9 | 160* | 44.3 |
17.8 | 0.54 | 36 | 2.24 | 63.5 | 7 | 170* | 49.8 |
Note : Epoxy fiberglass rod can be processed according to different requirements: slotting, turning, etc. We can produce any polygon insulating rod according to customer's requirement.
Technical Parameter
No | Test Item | Unit | Value |
1 | Density | g/cm3 | ≥2.14 |
2 | Water Absorption | % | 0.05 |
3 | Tensile Strength | MPa | ≥1400 |
4 | Flexural Strength | MPa | ≥900 |
5 | Thermal Flexural Strength | MPa | ≥300 |
6 | Compressive Strength | MPa | 950 |
7 | Fuchsine Test | Min | >15 |
8 | Volume Resistivity | Ω. m | ≥1010 |
9 | Water Diffusion Test | mA | 0.50 |
10 | Fiber content | % | >80 |
11 | Interlaminar Shear strength | MPa | ≥70 |
12 | Power Frequency Breakdown Voltage | KV/cm | ≥50 |
13 | Full Wave Impulse voltage | KV/cm | ≥100 |
14 | Stress Corrosion | hrs | ≥100 |
Application field: high-voltage transformer fittings, electrical and electronic insulation parts, water conservancy and hydropower insulation parts, switch cabinet insulation parts, frequency converter insulation parts, industrial furnace insulation parts,Semiconductor insulation parts, electrified railway insulation parts, ship manufacturing insulation parts, nuclear power insulation parts, bus groove insulation spacer. It is one of the widely used insulating materials at present.
Q: Are you a trading or a manufactory?
A: We are one of largest FRP manufacturer in China.
Q: Can your factory provide customized services?
A: Yes. We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
Q: I am interested in your products,can I have sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: What is your payment terms?
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay
Q: What is the delivery time
A: It depends on the products and order quantity . custom order will be delivered as the negotiation with our clients.
Q: How about after-sales service?
A: Most of the products have 1 year free warranty, Lifetime technical service support.For more details, please contact us any time.
