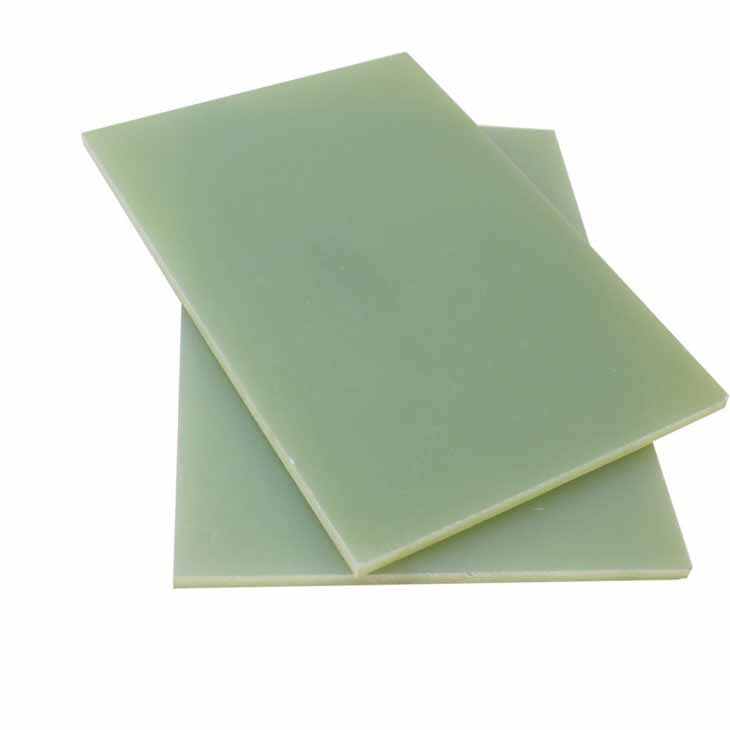

Epoxy Sheet, also known as insulation sheet, fiberglass sheet, and Epoxy sheet, it is made of alkali-free E-glass cloth impregnated with epoxy resins by processing under heat and pressure. It owns the character of high temperature resistance, High-intensity, Flame-retardant grades to UL94-V0, high mechanical properties and dielectric properties, good heat resistance, good-smoothness, etc.
Product Type: Epoxy fiberglass laminate sheet
Material: Flame- Retardant Epoxy Resin + Fiber glass Fabric
Application
Used in mechanical,electrical and electronic high insulation structure parts
Used in high-performance electrical insulation requirement.
Chemical machine parts
General machines parts and gear,generators,pads,base,baffle
Generator,transformer,fixture,inverter,motor.
3240 Epoxy Phenolic Glass Cloth Laminated Sheet
Grade:3240 Epoxy Phenolic Glass Cloth Laminated
Thickness:0.5mm to 50mm
Size:Standard sheet size is 2470mm x 1220mm
Description:
This product exhibits high mechanical and dielectrical properties. It can be used as insulating construction parts in electrical machines and apparatus. It can also be used in a humid environment and in transformer oil
1) Flame resistance. 2) High dielectric strength. 3) Moisture resistance. 4) Heat resistance. 5) Temperature resistance:150-180 6)Good flatness,smooth surface,no pits. |  |
Item : Epoxy Laminated Sheet | Value | ||
Specific gravity | g/cm³ | 1.70~1.90 | |
ºC | 155 | ||
Flexural strength min | Lengthwise | Mpa 343.2 | |
Crosswise | Mpa 284.4 | ||
Tensile strength min | Lengthwise | Mpa 294.2 | |
Crosswise | KJ/m² 147.1 | ||
Impact strength min | Crosswise Lengthwise | KJ/m² 147.1 | |
Surface strength min | Under normal condition | Ohms | Ω 1 x 1013 |
Volume resistivity min | Under normal condition | Ohms cm | Ω cm 1 x 1013 |
Insulation resistance parallel | Under normal condition | Ohms | Ω 1 x 1010 |
Dielectric loss Max | 50Hz | Kv/mm 0.05 | |
Breakdown strength | Thickness 0.5~1mm | Kv/mm 22.0 | |
Thickness 0.5~1mm | Kv/mm 20.0 | ||
Thickness 0.5~1mm | Kv/mm 18.0 | ||
Sheet with thickness more than 3mm shall be machined up to 3mm from one side | Kv/mm 18.0 | ||
Breakdown voltage parallel to laminations (at 90 ± 2ºC in transformer oil) | min | Kv | 30.0 |
Q: Are you a trading or a manufactory?
A: We are one of largest FRP manufacturer in China.
Q: Can your factory provide customized services?
A: Yes. We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
Q: I am interested in your products,can I have sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: What is your payment terms?
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay
Q: What is the delivery time
A: It depends on the products and order quantity . custom order will be delivered as the negotiation with our clients.
Q: How about after-sales service?
A: Most of the products have 1 year free warranty, Lifetime technical service support.For more details, please contact us any time.
